Probes

Cardiac Sector Probe
M5Sc-D [1.4 – 4.6MHz]
6S-D [2.4 – 8.0MHz]
12S-D [4.0 – 12.0MHz]



Linear Probe
9L-D [2.4 – 10.0MHz]
11L-D [4.5 – 12.0MHz]



Intraoperative Probe
L8-18i-D [5.0 – 15.0MHz]



Convex Probe
C1-6-D [1.5 – 6.0MHz]
C2-9-D [2.3 – 8.4MHz]



Micro Convex Probe

8C [4.0 – 8.0MHz]



Endo Cavity Probe
IC5-9-D [3.3 – 8.6MHz]



Non-imaging Doppler Probe
P2D [2 MHz]
P6D [6.3MHz]



Audult TEE Probe
6Tc [3.0 – 8.0MHz]
6Tc-RS [3.0 – 8.0MHz]



Pediatric TEE Probe
9T [3.0 – 10.0MHz]
9T-RS [3.0 – 10.0MHz]



Volume TEE Probe
6VT-D [3.0 – 8.0MHz]

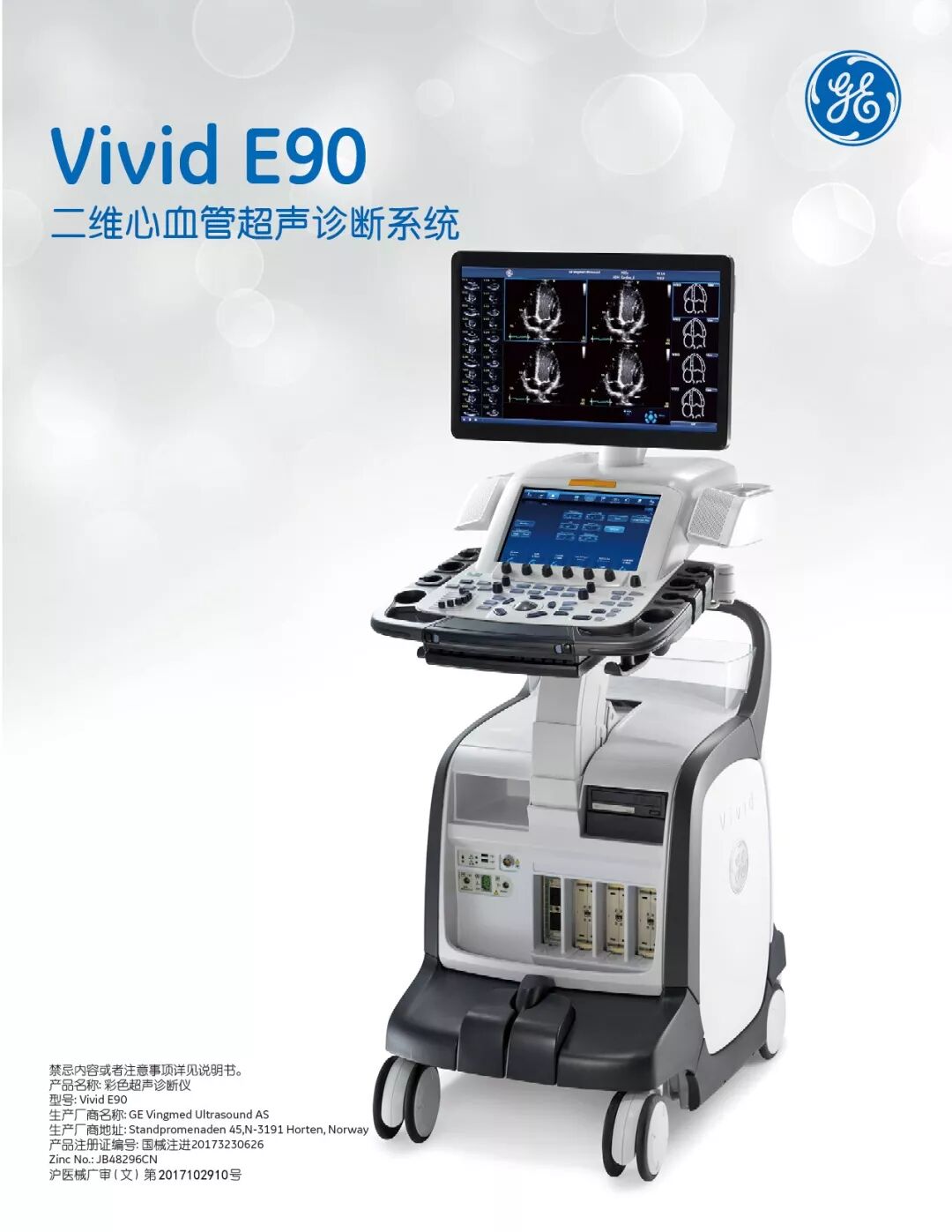

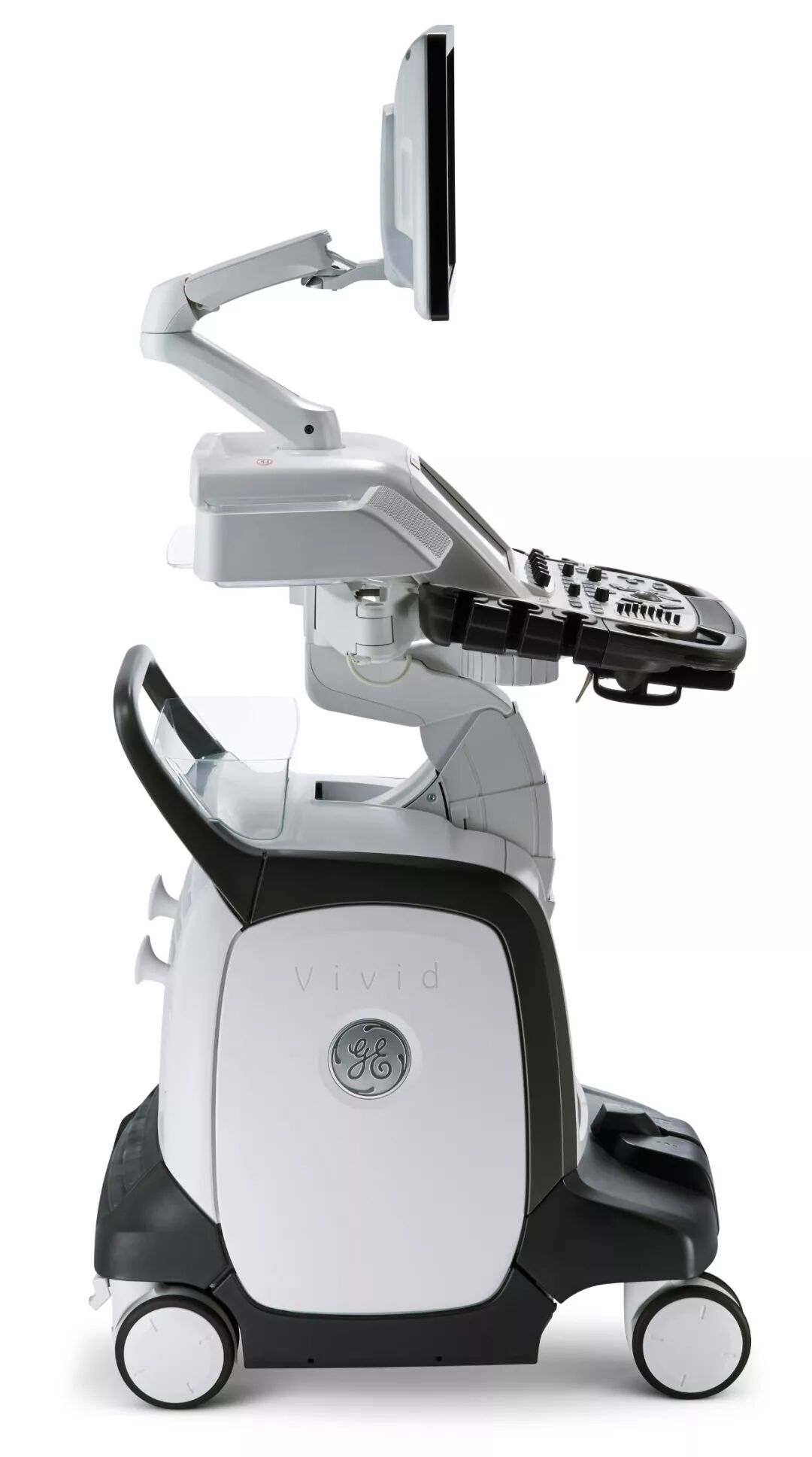

The Vivid™ E90 is a premium 2D cardiovascular ultrasound system designed to help you reach new heights of care efficiency and effectiveness.

真实呈现

基于GE全新的cSound™空间像素成像平台， 结合冰晶探头技术，从每个阵元捕捉精准信息，Vivid ™E90 带来具有强大穿透力和高血流敏感度、高空间分辨率的卓越二维图像。

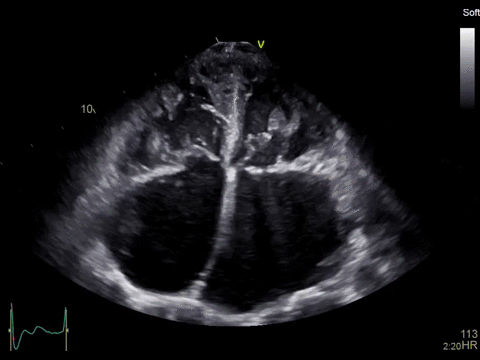

The Vivid E90 quickly brings you information with high contrast and spatial resolution – even for patients with body types or conditions that make them difficult to scan. GE’s XDclear™ probe technology pairs with our new imaging platform to capture data from every channel in the probe. Navigate smooth, continuous and detailed images with ease via new enhancements in both color and clarity.

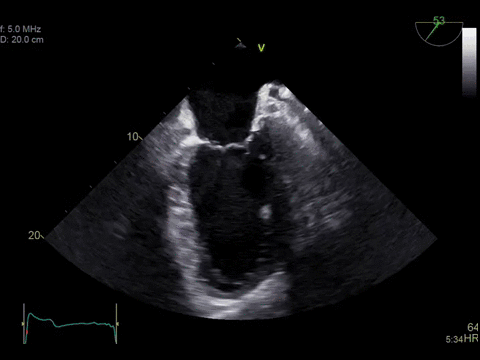

True Confocal Imaging Introduces uniform focusing, combined with increased contrast resolution throughout the field of view at high frame rates.

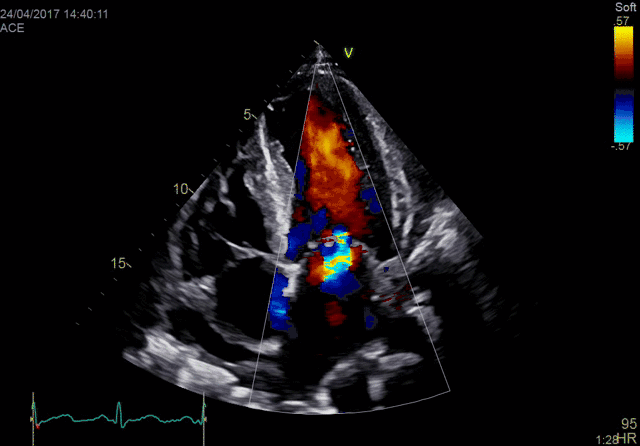

Color Flow - XDclear transducer technology provides excellent color sensitivity, contrast resolution and spectral crispness.

Define the care path Quantification with Vivid E90 is all about helping providers evaluate problems and pursue the path forward. Count on a full suite of intuitive tools to make your work easy and efficient. Quickly, accurately and thoroughly quantify left and right ventricular wall motion and other key functions.

定量工具

使用 Vivid™E90 简单直观的定量工具，只为帮助您更快速高效地评估和诊断心血管疾病

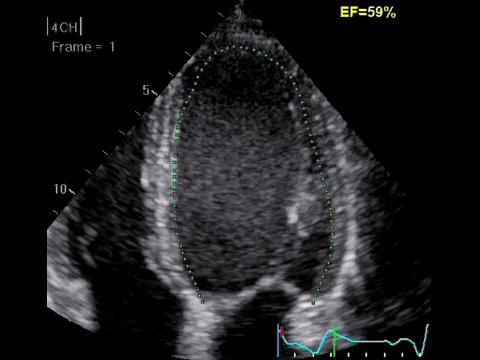

自动心功能计算(Auto EF)

Auto EF** - Based on a 2D-speckle tracking algorithm, assists in measuring the most commonly used parameter to describe the LV function.

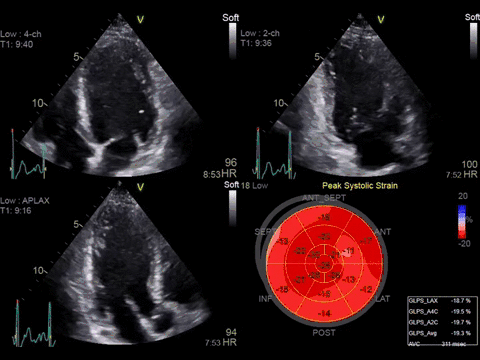

自动心肌功能成像(AFI)

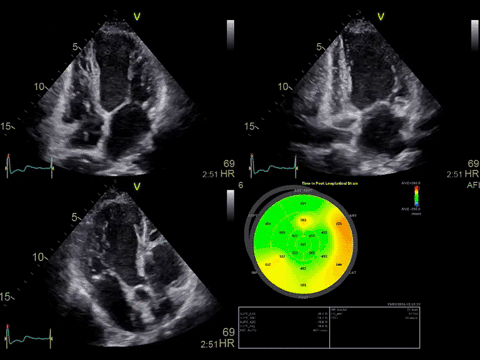

Automated Function Imaging (AFI)** - Assess and quantify left ventricular wall motion at rest or stress (with AFI stress option), calculating a large set of parameters.

峰值应变离散PSD

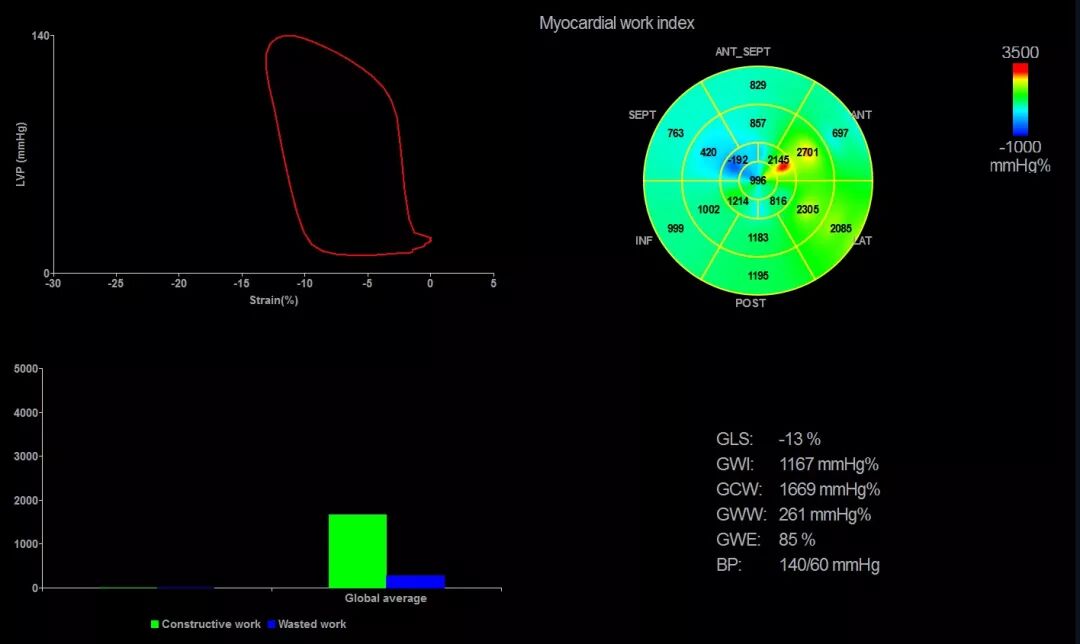

Myocardial Work** introduces new and less load dependent parameters based upon the results obtained with AFI (longitudinal strain) by accounting for the systolic blood pressure measured at rest immediately prior to the echo exam, as well as the MV and AV opening and closure times. These reduced load dependent parameters may provide more accurate and reproducible results, important especially for follow-up of patients over time.

人机工程学

具有 Vivid 家族经典的外观， 融合了现代高效的设计

• 22 英寸高分辨率的 OLED 自发光显示屏

• 12英寸 LCD触摸屏

• 可调节电动升降的控制面板

• 便捷的数据管理系统

• 轻松移动

• 高效和低噪声散热系统带来更低的能量消耗

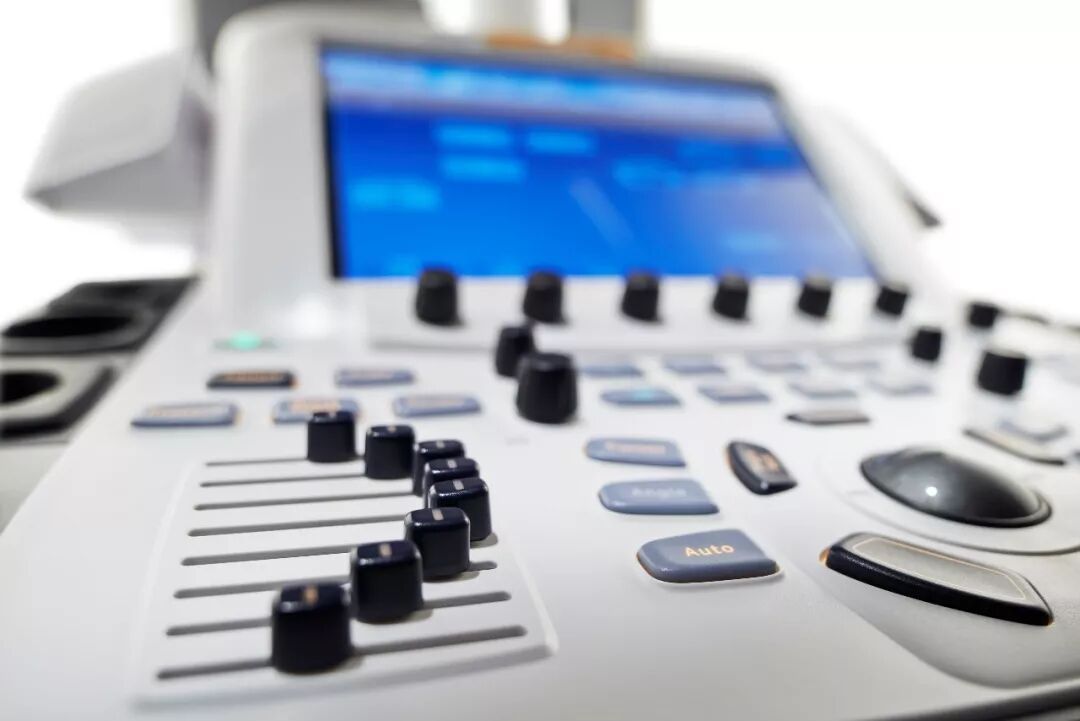

  ergonomics





• 22" high-resolution OLED monitor

• 12” LCD touch screen

• Adjustable floating keyboard

• Convenient data management

• Easy mobility

• Low power consumption with efficient and low noise cooling
